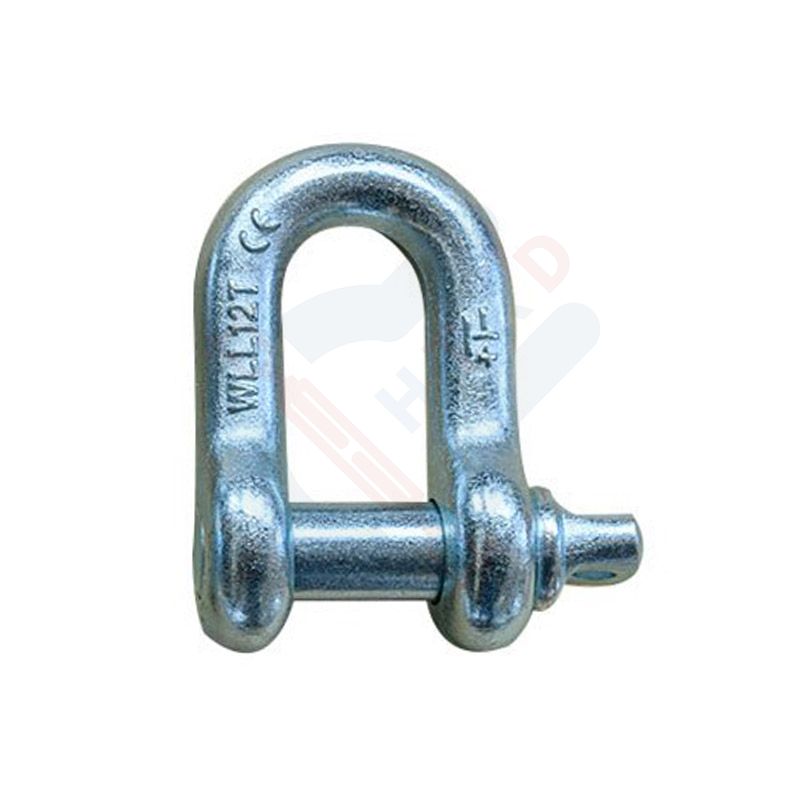

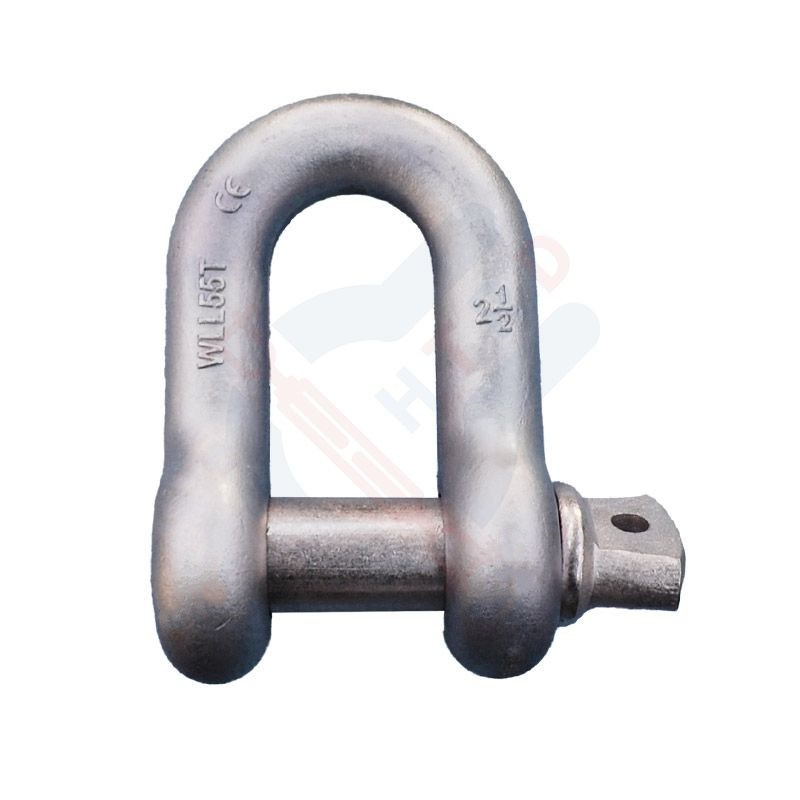

G-210 SHACKLE_Qingdao Hengtai Runda Rigging Co., Ltd.

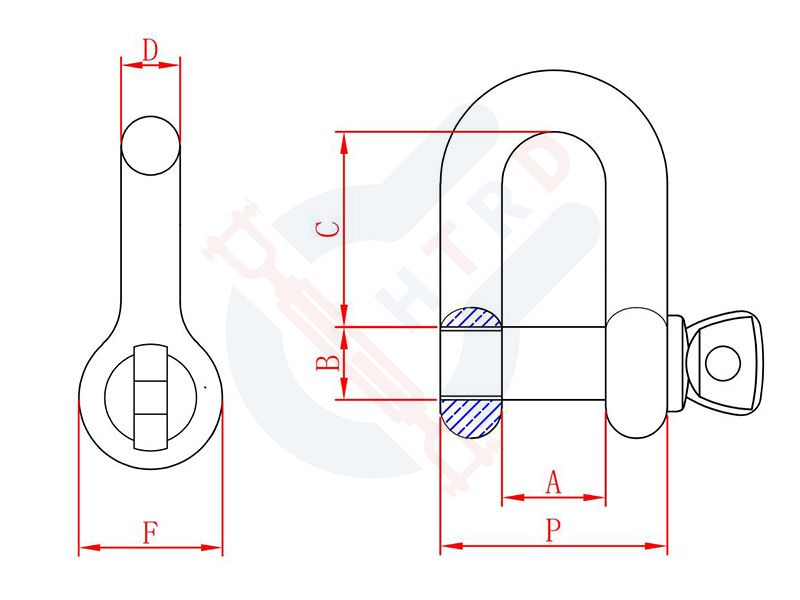

MODEL	WORKLOAD	PARTS						TOLERANCE±		WEIGHT KG
MODEL	WORKLOAD	A	B	C	D	F	P	C	A	WEIGHT KG
1/4	1/2T	12	8	22.4	6.4	15.5	24.7	1.5	1.5	0.05
5/16	3/4T	13.5	9.7	26	8	19	29.3	3.3	1.5	0.075
3/8	1T	16.7	11.2	315	9.7	23	36	3.3	1.5	0.135
7/16	1-1/2T	19	12.7	36.5	11.2	26.5	41.4	3.3	1.5	0.19
1/2	2T	20.3	15.6	42	13	32	47	3.3	1.5	0.28
5/8	3-1/4T	27	18.6	51	16	39	59.5+0.3	6.35	1.5	0.5
3/4	4-3/4T	31.5	22	58	19	47	71	6.35	1.5	0.92
7/8	6-1/2T	37	25	71.5	22.3	54	81.5	6.35	1.5	1.4
1	8-1/2	43	28	80	25.5	59	94	6.35	1.5	2
1-1/8	9-1/2T	46	32	92	28.5	68	102	6.35	1.5	2.9
1-1/4	12T	50	35	98	32	76	113	6.35	1.5	3.9
1-3/8	13-1/2T	57	38	119	35	84	127	6.35	3.3	5.6
1-1/2	17T	60	42	122	38	92	137	6.35	3.3	6.9
1-3/4	25T	73	50	143	44.5	105	164	6.35	3.3	11.4
2	35T	82	55	164	51	122	183+1	6.35	3.3	17.2
2-1/4	42.5T	94	65	190	58	130	210	6.35	3.3	22.91
2-1/2	55T	104	70	195	64	150	234	6.35	6.35	31.7
3	85T	132	80	212	77	165	285	6.35	6.35	51.2

Shackle
